Material Of Components
Matal Cap: Aluminum with PE sleeve
Matal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Ball- Stainless steel, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

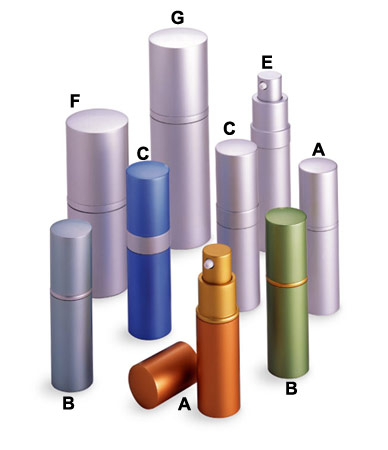

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 9 ml | 10.5 ml | 180 mcl | Narrow | 23.4 | 87.8 | 34.0 | 2.4 | 51.4 | | B | 15 ml | 17.0 ml | 180 mcl | Narrow | 25.8 | 95.3 | 35.5 | 2.2 | 57.6 | | C | 15 ml | 17.0ml | 180 mcl | Wide | 25.8 | 97.3 | 35.5 | 10.8 | 51.0 | | D | 20 ml | 21.5 ml | 180 mcl | Narrow | 25.8 | 112.0 | 35.5 | 2.2 | 74.3 | | E | 20 ml | 21.5 ml | 180 mcl | Wide | 25.8 | 114.3 | 35.5 | 10.8 | 68.0 | | F | 30 ml | 35.0 ml | 180 mcl | Narrow | 39.0 | 104.7 | 47.0 | 4.7 | 53.0 | | G | 50 ml | 56.0 ml | 180 mcl | Narrow | 39.0 | 135.0 | 47.0 | 4.7 | 83.3 |
| dimension unit: mm |  |
|
