Agate

Material Of Components
Metal Cap: Aluminum with PE sleeve
Metal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass

Custom Decoration
Double anodizing, embossing and silk screening

Drawing

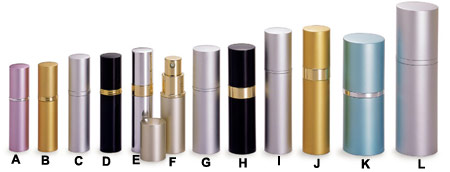

ITEM	Fill Size	Overflow	Output	Collar Option	a	b	c	d	e
A	5 ml	5.5 ml	50 mcl	Narrow	18.5	78.2	29.0	2.6	46.6
B	5 ml	5.5 ml	50 mcl	3-ring	18.5	79.9	29.0	4.3	46.6
C	7.5 ml	8.2 ml	50 mcl	Narrow	20.1	87.0	31.0	4.0	52.0
D	7.5 ml	8.2 ml	50 mcl	3-ring	20.1	88.0	31.0	5.0	52.0
E	7.5 ml	8.2 ml	90 mcl	Wide	20.1	93.6	31.0	10.6	52.0
F	9 ml	10.5 ml	90 mcl	Narrow	23.4	87.8	34.0	2.4	51.4
G	15 ml	17.0 ml	90 mcl	Narrow	25.8	95.3	35.5	2.2	57.6
H	15 ml	17.0 ml	90 mcl	Narrow	25.8	97.3	35.5	10.8	51.0
I	20 ml	21.5 ml	90 mcl	Narrow	25.8	112.0	35.5	2.2	74.3
J	20 ml	21.5 ml	90 mcl	Wide	25.8	114.3	35.5	10.8	68.0
K	30 ml	35.0 ml	90 mcl	Narrow	39.0	104.7	47.0	4.7	53.0
L	50 ml	56.0 ml	90 mcl	Narrow	39.0	39.0	135.0	4.7	83.3

dimension unit: mm
