Material Of Components
Metal Cap: Aluminum with PE sleeve
Metal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

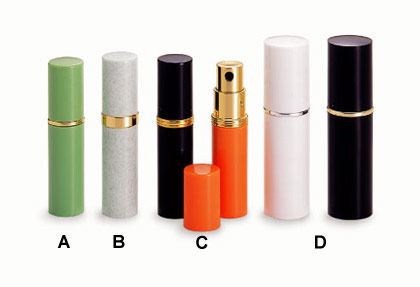

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 5 ml | 5.5 ml | 50 mcl | Narrow | 18.5 | 76.1 | 28.4 | 2.6 | 45.1 | | B | 5 ml | 5.5 ml | 50 mcl | Wide | 18.5 | 79.3 | 28.4 | 5.8 | 45.1 | | C | 5 ml | 5.5 ml | 50 mcl | 3-ring | 18.5 | 77.8 | 28.4 | 4.3 | 45.1 | | D | 9 ml | 10.5 ml | 90 mcl | Narrow | 23.3 | 87.1 | 33.6 | 2.5 | 51.0 |
| dimension unit: mm |  |
|
